Fire-Resistant Aluminum Composite Panel
Fire-Resistant Aluminum Composite Panel
ALUCOBANG FR (Fire resist) ACP comprises a mineral core between two aluminum skins. Thicknesses of the mineral core and aluminum skins can be designed according to customers’ requirements. Besides the traditional Magnesium Hydroxide filled core, Aluminum Tri-hydroxide filled core is available as well. The front surface can be PVDF, FEVE, Nano or PE coated. The bottom surface can be used anti-corrosive paint. The interlayer is non-combustible mineral material, which has excellent ability in fire resistance. Also, mineral material enables ACP to have high peel strength and excellent impact resistance.
ALUCOBANG FR ACP meets the standards of GB 8624 (Grade B, Grade A2), ASTM E-84(Grade B, Grade A2), ASTM E119(2 hours), NFPA 285 (Qualified), EN13501-1 (Grade A2)

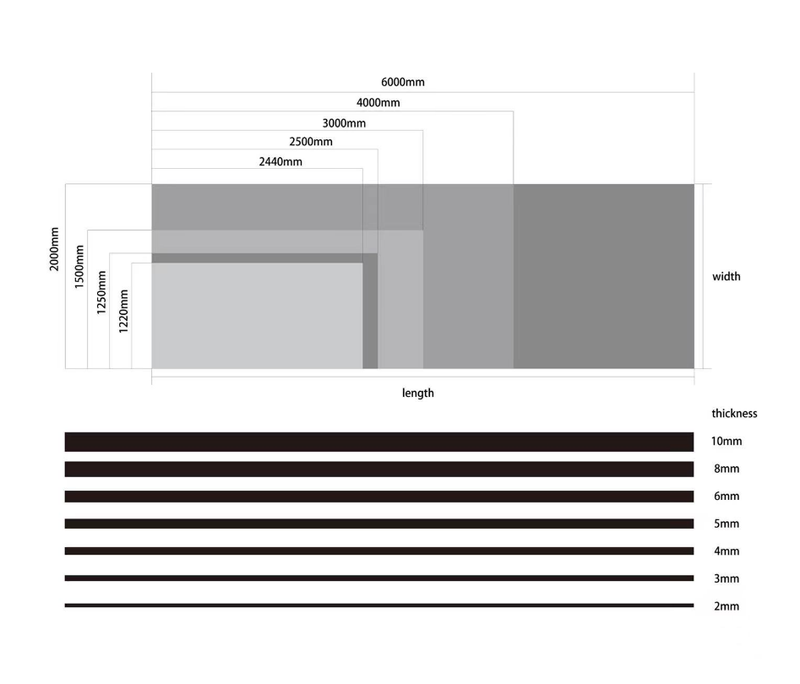

Product Specifications
Thickness: 2-6mm; 3mm and 4mm is recommended
Width: 1000-2000mm; 1220mm, 1250mm and 1500mm are recommended
Length: Maximum is up to 5800mm, 2440mm,3000mm and 4000mm are recommended
Thickness of aluminum sheet: 0.21mm-0.5mm
Raw Material
Aluminum Material: High strength aluminum alloy sheet
Core Material: Fire-resist core
Surface Coating: PVDF, FEVE, Nano or PE coating
Bottom Coating: Anticorrosive primer coating

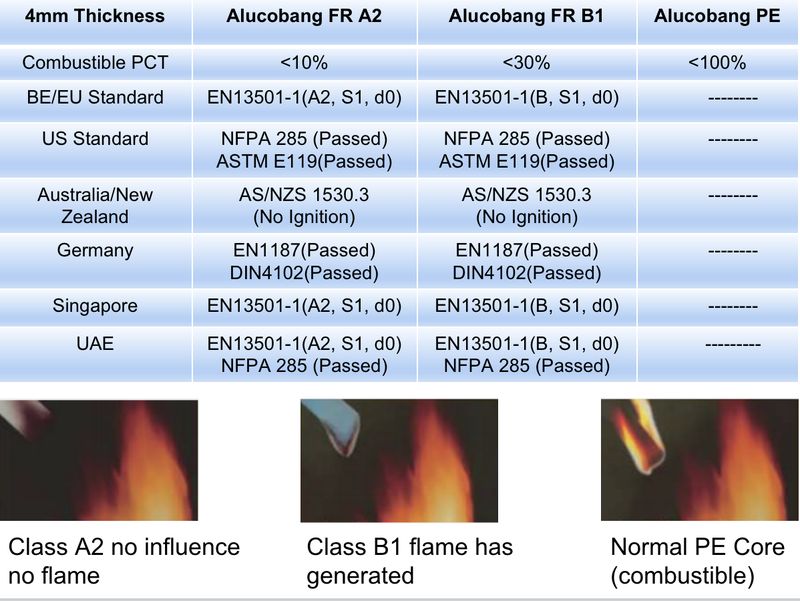

Characteristic of B1 Fire-resist ACP
