4mm A2 Fireproof Aluminum Composite Panel

4mm A2 Fireproof Aluminum Composite Panel

It reaches EN13501-1 standard to be classified as A2-S1-d0, and BS476 standard part 4, compliance with either of these two standards means the composite panel is deemed as non-combustible. It is comprised of 2 layers of alu skin and 1 layer of A2 core. The A2 Aluminium Composite Panel meets the highest noncombustible grade that composite material can reach at the moment; and Alucobang A2 Aluminium Composite Panel still keeps the other general properties that normal aluminium composite has, such as different colors and finishes available, lighter weight comparing to same thickness of solid aluminium panel, easy fabrication and easy installation, excellent panel flatness.

Alucobang A2 Aluminium Composite Panel is majorly used for high-rise buildings, shopping malls, metro stations, airport projects etc, at the places where high fire retardant standard has to be met.

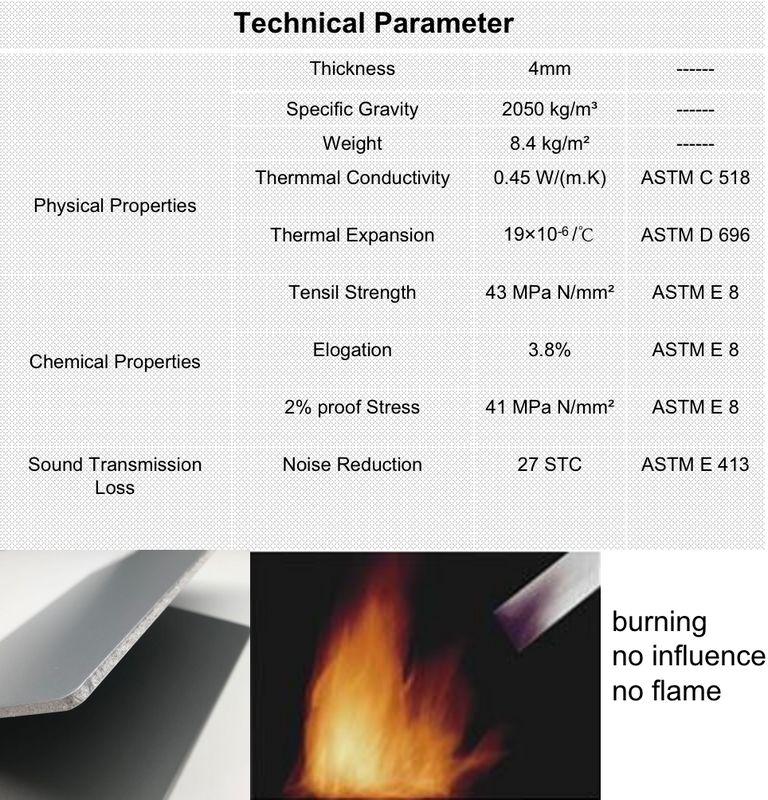

Product Specifications
Thickness: 2-6mm; 3mm and 4mm is recommended
Width: 1000-2000mm; 1220mm, 1250mm and 1500mm are recommended
Length: Maximum can up to 5800mm, 2440mm, 3000mm and 4000mm are recommended
Thickness of aluminum sheet: 0.21mm-0.5mm






Raw Material
Aluminum Material: High strength aluminum alloy sheet
Core Material: Fire-resist core (A2)
Surface Coating: PVDF, FEVE, Nano or PE coating
Bottom Coating: Anticorrosive primer coating



Characteristic of A2 Fire-resist ACP
